vxe-table 使用行分组，对数据进行分组，指定多字段分组的使用

查看官网：https://vxetable.cn
gitbub：https://github.com/x-extends/vxe-table
gitee：https://gitee.com/x-extends/vxe-table

安装

npm install vxe-pc-ui@3.5.26 vxe-table@3.15.6

// ...
import VxeUIAll from 'vxe-pc-ui'
import 'vxe-pc-ui/lib/style.css'
import VxeUITable from 'vxe-table'
import 'vxe-table/lib/style.css'
// ...

Vue.use(VxeUIAll)
Vue.use(VxeUITable)
// ...

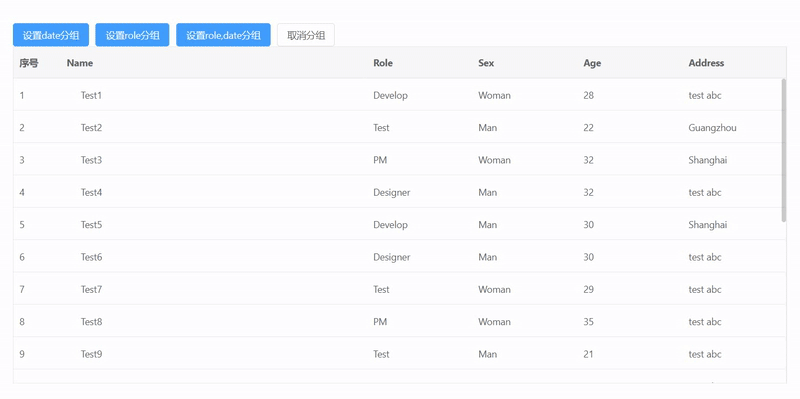

效果

代码

通过设置 row-group-config 行分组模式，通过参数 groupFields 或者调用 setRowGroups 方法就可以设置行分组

<template>
  <div>
    <p>
      <vxe-button status="primary" @click="handleRowGroup(['date'])">设置date分组</vxe-button>
      <vxe-button status="primary" @click="handleRowGroup(['role'])">设置role分组</vxe-button>
      <vxe-button status="primary" @click="handleRowGroup(['role', 'date'])">设置role,date分组</vxe-button>
      <vxe-button @click="cancelRowGroup()">取消分组</vxe-button>
    </p>

    <vxe-grid ref="gridRef" v-bind="gridOptions"></vxe-grid>
  </div>
</template>

<script>
export default {
  data () {
    const gridOptions = {
      height: 500,
      showOverflow: true,
      rowGroupConfig: {},
      columns: [
        { type: 'seq', width: 70 },
        { field: 'name', title: 'Name', minWidth: 300, rowGroupNode: true },
        { field: 'role', title: 'Role' },
        { field: 'sex', title: 'Sex' },
        { field: 'age', title: 'Age' },
        { field: 'address', title: 'Address' }
      ],
      data: [
        { id: 10001, name: 'Test1', role: 'Develop', sex: 'Woman', age: 28, date: '2025-02-01', address: 'test abc' },
        { id: 10002, name: 'Test2', role: 'Test', sex: 'Man', age: 22, date: '2025-01-01', address: 'Guangzhou' },
        { id: 10003, name: 'Test3', role: 'PM', sex: 'Woman', age: 32, date: '2025-05-01', address: 'Shanghai' },
        { id: 10004, name: 'Test4', role: 'Designer', sex: 'Man', age: 32, date: '2025-01-01', address: 'test abc' },
        { id: 10005, name: 'Test5', role: 'Develop', sex: 'Man', age: 30, date: '2025-01-01', address: 'Shanghai' },
        { id: 10006, name: 'Test6', role: 'Designer', sex: 'Man', age: 30, date: '2025-03-01', address: 'test abc' },
        { id: 10007, name: 'Test7', role: 'Test', sex: 'Woman', age: 29, date: '2025-05-01', address: 'test abc' },
        { id: 10008, name: 'Test8', role: 'PM', sex: 'Woman', age: 35, date: '2025-11-01', address: 'test abc' },
        { id: 10009, name: 'Test9', role: 'Test', sex: 'Man', age: 21, date: '2025-05-01', address: 'test abc' },
        { id: 10010, name: 'Test10', role: 'PM', sex: 'Woman', age: 28, date: '2025-03-01', address: 'test abc' },
        { id: 10011, name: 'Test11', role: 'Test', sex: 'Woman', age: 29, date: '2025-03-01', address: 'test abc' },
        { id: 10012, name: 'Test12', role: 'Develop', sex: 'Man', age: 37, date: '2025-10-01', address: 'test abc' },
        { id: 10013, name: 'Test13', role: 'Test', sex: 'Woman', age: 24, date: '2025-02-01', address: 'test abc' },
        { id: 10014, name: 'Test14', role: 'Develop', sex: 'Man', age: 34, date: '2025-08-01', address: 'test abc' },
        { id: 10015, name: 'Test15', role: 'Designer', sex: 'Man', age: 21, date: '2025-05-01', address: 'test abc' },
        { id: 10016, name: 'Test16', role: 'Designer', sex: 'Woman', age: 21, date: '2025-10-01', address: 'test abc' },
        { id: 10017, name: 'Test17', role: 'Test', sex: 'Man', age: 31, date: '2025-12-01', address: 'test abc' },
        { id: 10018, name: 'Test18', role: 'Develop', sex: 'Woman', age: 32, date: '2025-10-01', address: 'test abc' },
        { id: 10019, name: 'Test19', role: 'Test', sex: 'Man', age: 37, date: '2025-02-01', address: 'test abc' },
        { id: 10020, name: 'Test20', role: 'Develop', sex: 'Man', age: 41, date: '2025-03-01', address: 'test abc' }
      ]
    }
    return {
      gridOptions
    }
  },
  methods: {
    handleRowGroup (fields) {
      const $grid = this.$refs.gridRef
      if ($grid) {
        $grid.setRowGroups(fields)
      }
    },
    cancelRowGroup () {
      const $grid = this.$refs.gridRef
      if ($grid) {
        $grid.clearRowGroups()
      }
    }
  }
}
</script>

https://gitee.com/x-extends/vxe-table
