使用Inno Setup制作WPF开发的桌面应用程序流程

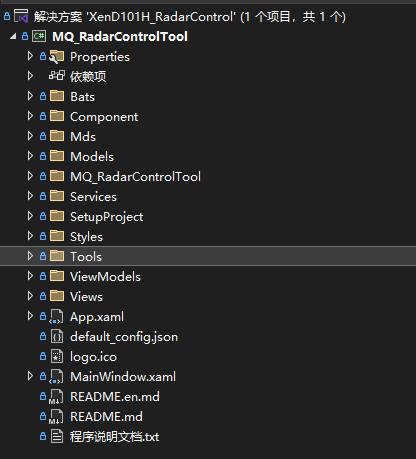

1.项目框架布局
项目目录：D:\Project\XenD101H\Tools，这个目录我将下载innosetup-6.2.2.exe 安装的程序放置这里，以及有几个脚本执行文件，最后输出RadarSensorConfigTool.exe，放置在D:\Project\XenD101H\Tools\Install\Output这个目录下
2.制作安装包流程：
2.1 下载innosetup-6.2.2.exe，双击执行InstallInnoSetup.bat文件【如果已安装可跳过】
脚本内容如下：
@echo off
echo ========================================
echo Inno Setup 自动安装脚本
echo ========================================
echo.
echo [1/4] 检查是否已安装...
where iscc >nul 2>&1
if %ERRORLEVEL% equ 0 (
echo Inno Setup 已安装
iscc /?
echo.
echo 当前版本信息已显示
pause
exit /b 0
)
echo Inno Setup 未安装，开始安装...
echo.
echo [2/4] 检查下载工具...
where curl >nul 2>&1
if %ERRORLEVEL% equ 0 (
set "DOWNLOAD_TOOL=curl"
echo 使用 curl 下载
) else (
where powershell >nul 2>&1
if %ERRORLEVEL% equ 0 (
set "DOWNLOAD_TOOL=powershell"
echo 使用 PowerShell 下载
) else (
echo 未找到下载工具
echo 请手动下载 Inno Setup: https://jrsoftware.org/isdl.php
pause
exit /b 1
)
)
echo.
echo [3/4] 下载 Inno Setup...
set "DOWNLOAD_URL=https://files.jrsoftware.org/is/6/innosetup-6.2.2.exe"
set "INSTALLER_FILE=innosetup-6.2.2.exe"
if "%DOWNLOAD_TOOL%"=="curl" (
echo 使用 curl 下载...
curl -L -o "%INSTALLER_FILE%" "%DOWNLOAD_URL%"
) else (
echo 使用 PowerShell 下载...
powershell -Command "& { Invoke-WebRequest -Uri '%DOWNLOAD_URL%' -OutFile '%INSTALLER_FILE%' }"
)
if not exist "%INSTALLER_FILE%" (
echo 下载失败
echo 请手动下载: %DOWNLOAD_URL%
pause
exit /b 1
)
echo 下载完成: %INSTALLER_FILE%
echo.
echo [4/4] 安装 Inno Setup...
echo 正在启动安装程序...
echo 请按照安装向导完成安装
echo.
start "" "%INSTALLER_FILE%"
echo 等待安装完成...
echo 安装完成后，请按任意键继续...
pause
echo.
echo 验证安装...
where iscc >nul 2>&1
if %ERRORLEVEL% equ 0 (
echo Inno Setup 安装成功！
echo.
echo 版本信息:
iscc /?
) else (
echo Inno Setup 安装失败或未添加到PATH
echo 请检查安装路径并手动添加到PATH
echo 默认安装路径: C:\Program Files (x86)\Inno Setup 6\
)
echo.
echo 清理临时文件...
if exist "%INSTALLER_FILE%" del "%INSTALLER_FILE%"
echo.
echo ========================================
echo Inno Setup 安装完成！
echo ========================================
echo.
echo 安装信息:
echo - 版本: Inno Setup 6.2.2
echo - 安装路径: C:\Program Files (x86)\Inno Setup 6\
echo - 编译器: iscc.exe
echo.
echo 下一步:
echo 1. 运行 RadarSensorConfigToolInstaller_Fixed_v2.bat 生成安装包
echo 2. 或运行 QuickTestInstaller.bat 快速测试
echo.
pause
2.2 新建RadarSensorConfigTool_Setup.iss
; 雷达传感器配置工具 Inno Setup 安装脚本 (Tools目录版本)
; 使用 Inno Setup PE 生成安装程序
#define MyAppName "Radar Sensor Config Tool"
#define MyAppVersion "1.0.0"
#define MyAppPublisher "QUECTEL Technology"
#define MyAppURL "https://www.mqtech.com"
#define MyAppExeName "MQ_RadarControlTool.exe"
#define MyAppIcon "..\logo.ico"
[Setup]
; 应用程序基本信息
AppId={{12345678-1234-1234-1234-123456789012}
AppName={#MyAppName}
AppVersion={#MyAppVersion}
AppVerName={#MyAppName} {#MyAppVersion}
AppPublisher={#MyAppPublisher}
AppPublisherURL={#MyAppURL}
AppSupportURL={#MyAppURL}
AppUpdatesURL={#MyAppURL}
; 安装包设置
DefaultDirName={autopf}\MQ_RadarControlTool
DefaultGroupName=Radar Sensor Config Tool
AllowNoIcons=yes
LicenseFile=
InfoBeforeFile=
InfoAfterFile=
OutputDir=Installer\Output
OutputBaseFilename=RadarSensorConfigTool
SetupIconFile={#MyAppIcon}
Compression=lzma
SolidCompression=yes
WizardStyle=modern
; 系统要求
MinVersion=6.1sp1
PrivilegesRequired=admin
; 界面设置
WizardImageFile=
WizardSmallImageFile=
DisableProgramGroupPage=yes
DisableReadyPage=no
DisableFinishedPage=no
; 语言设置 - 使用默认英语，避免语言文件问题
LanguageDetectionMethod=locale
ShowLanguageDialog=no
[Languages]
; 只使用默认英语，避免中文语言文件问题
Name: "english"; MessagesFile: "compiler:Default.isl"
[Tasks]
Name: "desktopicon"; Description: "Create a &desktop icon"; GroupDescription: "Additional icons:"; Flags: unchecked
Name: "quicklaunchicon"; Description: "Create a &Quick Launch icon"; GroupDescription: "Additional icons:"; Flags: unchecked; OnlyBelowVersion: 6.1; Check: not IsAdminInstallMode
[Files]
; 主程序文件 - 使用相对路径指向项目根目录
Source: "..\bin\Release\net8.0-windows\{#MyAppExeName}"; DestDir: "{app}"; Flags: ignoreversion
Source: "..\bin\Release\net8.0-windows\MQ_RadarControlTool.dll"; DestDir: "{app}"; Flags: ignoreversion
Source: "..\bin\Release\net8.0-windows\MQ_RadarControlTool.runtimeconfig.json"; DestDir: "{app}"; Flags: ignoreversion
Source: "..\bin\Release\net8.0-windows\MQ_RadarControlTool.deps.json"; DestDir: "{app}"; Flags: ignoreversion
Source: "..\bin\Release\net8.0-windows\MQ_RadarControlTool.pdb"; DestDir: "{app}"; Flags: ignoreversion
; 依赖库文件
Source: "..\bin\Release\net8.0-windows\CommunityToolkit.Mvvm.dll"; DestDir: "{app}"; Flags: ignoreversion
Source: "..\bin\Release\net8.0-windows\System.IO.Ports.dll"; DestDir: "{app}"; Flags: ignoreversion
; 运行时库文件
Source: "..\bin\Release\net8.0-windows\runtimes\win\lib\net8.0\System.IO.Ports.dll"; DestDir: "{app}\runtimes\win\lib\net8.0"; Flags: ignoreversion
Source: "..\bin\Release\net8.0-windows\runtimes\unix\lib\net8.0\System.IO.Ports.dll"; DestDir: "{app}\runtimes\unix\lib\net8.0"; Flags: ignoreversion
Source: "..\bin\Release\net8.0-windows\runtimes\linux-x64\native\libSystem.IO.Ports.Native.so"; DestDir: "{app}\runtimes\linux-x64\native"; Flags: ignoreversion
Source: "..\bin\Release\net8.0-windows\runtimes\linux-arm\native\libSystem.IO.Ports.Native.so"; DestDir: "{app}\runtimes\linux-arm\native"; Flags: ignoreversion
Source: "..\bin\Release\net8.0-windows\runtimes\linux-arm64\native\libSystem.IO.Ports.Native.so"; DestDir: "{app}\runtimes\linux-arm64\native"; Flags: ignoreversion
Source: "..\bin\Release\net8.0-windows\runtimes\osx-x64\native\libSystem.IO.Ports.Native.dylib"; DestDir: "{app}\runtimes\osx-x64\native"; Flags: ignoreversion
Source: "..\bin\Release\net8.0-windows\runtimes\osx-arm64\native\libSystem.IO.Ports.Native.dylib"; DestDir: "{app}\runtimes\osx-arm64\native"; Flags: ignoreversion
; 配置文件和图标
Source: "..\default_config.json"; DestDir: "{app}"; Flags: ignoreversion
Source: "{#MyAppIcon}"; DestDir: "{app}"; Flags: ignoreversion
; 注意：不要包含临时文件、日志文件等
[Icons]
; 开始菜单快捷方式
Name: "{group}\Radar Sensor Config Tool"; Filename: "{app}\{#MyAppExeName}"; IconFilename: "{app}\{#MyAppIcon}"
Name: "{group}\Uninstall Radar Sensor Config Tool"; Filename: "{uninstallexe}"
; 桌面快捷方式
Name: "{autodesktop}\Radar Sensor Config Tool"; Filename: "{app}\{#MyAppExeName}"; IconFilename: "{app}\{#MyAppIcon}"; Tasks: desktopicon
; 快速启动栏快捷方式
Name: "{userappdata}\Microsoft\Internet Explorer\Quick Launch\Radar Sensor Config Tool"; Filename: "{app}\{#MyAppExeName}"; IconFilename: "{app}\{#MyAppIcon}"; Tasks: quicklaunchicon
[Run]
; 安装完成后运行程序
Filename: "{app}\{#MyAppExeName}"; Description: "Launch {#MyAppName}"; Flags: nowait postinstall skipifsilent
[UninstallDelete]
; 卸载时删除的文件和目录
Type: filesandordirs; Name: "{app}\logs"
Type: filesandordirs; Name: "{app}\temp"
Type: files; Name: "{app}\*.log"
[Code]
// 简化的自定义代码，移除复杂的.NET检测
function InitializeSetup(): Boolean;
begin
Result := True;
// 显示简单的欢迎信息
MsgBox('Welcome to Radar Sensor Config Tool Setup!' + #13#10 + #13#10 +
'Please ensure .NET 8.0 runtime is installed on your system.',
mbInformation, MB_OK);
end;
// 安装完成后的自定义操作
procedure CurStepChanged(CurStep: TSetupStep);
begin
if CurStep = ssPostInstall then
begin
// 可以在这里添加安装完成后的自定义操作
// 例如：创建配置文件、注册表项等
end;
end;
// 卸载前的自定义操作
function InitializeUninstall(): Boolean;
begin
Result := True;
// 检查程序是否正在运行
if CheckForMutexes('MQ_RadarControlTool_Mutex') then
begin
if MsgBox('Radar Sensor Configuration Tool is running.' + #13#10 +
'Please close the program first, then retry uninstall.',
mbError, MB_OK) = IDOK then
begin
Result := False;
end;
end;
end;
2.3 新建RadarSensorConfigToolInstaller_Fixed_v2.bat，双击执行，
命令内容如下：
@echo off
chcp 65001 >nul
echo ========================================
echo 雷达传感器配置工具 快速测试安装包 (修复版 v2)
echo ========================================
echo.
echo [1/4] 检查必要文件...
set "ERROR_COUNT=0"
echo 检查主程序文件...
if not exist "..\bin\Release\net8.0-windows\MQ_RadarControlTool.exe" (
echo 主程序文件不存在: ..\bin\Release\net8.0-windows\MQ_RadarControlTool.exe
echo 请先构建项目: dotnet build -c Release
set /a ERROR_COUNT+=1
) else (
echo 主程序文件存在
)
echo 检查图标文件...
if not exist "..\logo.ico" (
echo 图标文件不存在: ..\logo.ico
set /a ERROR_COUNT+=1
) else (
echo 图标文件存在
)
echo 检查Inno Setup脚本...
if not exist "RadarSensorConfigTool_Setup.iss" (
echo 修复版Inno Setup脚本不存在: RadarSensorConfigTool_Setup.iss
set /a ERROR_COUNT+=1
) else (
echo 修复版Inno Setup脚本存在
)
if %ERROR_COUNT% gtr 0 (
echo.
echo 发现 %ERROR_COUNT% 个错误，请先解决这些问题
echo.
echo 解决方案:
if not exist "..\bin\Release\net8.0-windows\MQ_RadarControlTool.exe" (
echo 1. 构建项目: dotnet build -c Release
)
if not exist "..\logo.ico" (
echo 2. 确保logo.ico文件在项目根目录
)
if not exist "RadarSensorConfigTool_Setup.iss" (
echo 3. 确保修复版Inno Setup脚本文件存在
)
pause
exit /b 1
)
echo.
echo [2/4] 检查Inno Setup编译器...
set "INNO_PATH="
where iscc >nul 2>&1
if %ERRORLEVEL% equ 0 (
echo Inno Setup编译器在PATH中可用
set "INNO_PATH=iscc"
) else (
echo 警告: 未找到Inno Setup编译器
echo 尝试查找Inno Setup安装路径...
if exist "C:\Program Files (x86)\Inno Setup 6\iscc.exe" (
set "INNO_PATH=C:\Program Files (x86)\Inno Setup 6\iscc.exe"
echo 找到Inno Setup 6: %INNO_PATH%
) else if exist "C:\Program Files\Inno Setup 6\iscc.exe" (
set "INNO_PATH=C:\Program Files\Inno Setup 6\iscc.exe"
echo 找到Inno Setup 6: %INNO_PATH%
) else if exist "C:\Program Files (x86)\Inno Setup 5\iscc.exe" (
set "INNO_PATH=C:\Program Files (x86)\Inno Setup 5\iscc.exe"
echo 找到Inno Setup 5: %INNO_PATH%
) else if exist "C:\Program Files\Inno Setup 5\iscc.exe" (
set "INNO_PATH=C:\Program Files\Inno Setup 5\iscc.exe"
echo 找到Inno Setup 5: %INNO_PATH%
) else (
echo 未找到Inno Setup编译器
echo 请下载并安装Inno Setup: https://jrsoftware.org/isinfo.php
echo 或运行: InstallInnoSetup.bat
pause
exit /b 1
)
)
echo.
echo [3/4] 准备输出目录...
if not exist "Installer" mkdir "Installer"
if not exist "Installer\Output" mkdir "Installer\Output"
echo 输出目录准备完成
echo.
echo [4/4] 生成安装包...
echo 使用编译器: %INNO_PATH%
echo 编译脚本: RadarSensorConfigTool_Setup.iss
echo 输出目录: Installer\Output
echo.
echo 开始编译...
"%INNO_PATH%" "RadarSensorConfigTool_Setup.iss"
if %ERRORLEVEL% equ 0 (
echo.
echo ========================================
echo 安装包生成成功！
echo ========================================
echo.
if exist "Installer\Output\RadarSensorConfigTool.exe" (
echo 安装包位置:
echo Tools\Installer\Output\RadarSensorConfigTool.exe
echo.
for %%I in ("Installer\Output\RadarSensorConfigTool.exe") do (
echo 安装包信息:
echo 文件名: %%~nxI
echo 大小: %%~zI 字节
echo 路径: %%~fI
echo 修改时间: %%~tI
)
echo.
echo 测试选项:
echo 1. 运行安装包
echo 2. 打开安装包目录
echo 3. 退出
echo.
set /p choice="请选择 (1-3): "
if "%choice%"=="1" (
echo 启动安装包...
start "" "Installer\Output\RadarSensorConfigTool.exe"
) else if "%choice%"=="2" (
echo 打开安装包目录...
start "" "Installer\Output"
)
) else (
echo 安装包文件未找到
echo 请检查编译日志
)
) else (
echo.
echo 安装包生成失败
echo 错误代码: %ERRORLEVEL%
echo.
echo 可能的解决方案:
echo 1. 检查Inno Setup脚本语法
echo 2. 确保所有源文件存在
echo 3. 检查文件路径是否正确
)
echo.
pause
执行完成后，安装包就可以生成了，本脚本可以复用，只需要改你编译好发布好的dll或程序exe的名称。
如果本文介绍对你有帮助，可以一键四连：点赞+评论+收藏+推荐，谢谢！
