Aspose.Imaging for .NET是一款深受 .NET 开发人员喜爱的图像处理 SDK,因为它灵活且易于开发人员使用。EMF 图像文件格式提供出色的打印质量和可扩展性。此外,这种图像文件格式还节省存储空间。Aspose.Imaging for .NET 能够使 SVG 到 EMF 的转换变得简单且经济实惠。本教程将演示如何借助Aspose.Imaging for .NET在 C# 中无缝地将SVG转换为EMF。请确保您已在计算机上安装 .NET,以便可以立即实现该功能。
Aspose.Imaging for .NET官方正版下载,请联系Aspose官方授权代理商慧都科技
加入Aspose技术交流QQ群(1041253375),与更多小伙伴一起探讨提升开发技能。
图像处理 SDK – 安装
我们将安装Aspose.Imaging for .NET。
Aspose.Imaging for .NET官方正版下载,请联系Aspose官方授权代理商慧都科技
加入Aspose技术交流QQ群(1041253375),与更多小伙伴一起探讨提升开发技能。
Install-Package Aspose.Imaging
使用 C# 编程将 SVG 转换为 EMF
您可以按照以下步骤开发 SVG 到 EMF 转换器:
- 循环遍历文件数组。
- 通过调用Image.Load(inputFileName)方法加载源 SVG 文件。
- 将 SVG光栅化选项设置为与原始图像相同的页面大小。
- 初始化 EMF选项并分配 SVG 光栅化设置以进行矢量渲染。
- Save方法将把生成的 EMF 文件保存到磁盘上。
以下代码示例展示了如何以编程方式在 C# 中将 SVG 转换为 EMF:
using Aspose.Imaging; using Aspose.Imaging.ImageOptions; namespace CSharp.ModifyingAndConvertingImages.CDR { class CdrToPngExample { static void Main() { // The path to the documents directory. string dataDir = "files"; string[] testFiles = new string[] { "Sample.svg" }; License lic = new License(); lic.SetLicense(dataDir+"License.lic"); // Loop through the files array. foreach (string fileName in testFiles) { string inputFileName = Path.Combine(dataDir, fileName); string outputFileName = Path.Combine(dataDir, fileName + ".emf"); // Load the source SVG file by calling the Image.Load(inputFileName) method. using (Image image = Image.Load(inputFileName)) { // Set SVG rasterization options with the same page size as the original image. VectorRasterizationOptions vectorRasterizationOptions = new SvgRasterizationOptions { PageSize = image.Size }; // Initialize EMF options and assign the SVG rasterization settings for vector rendering. EmfOptions emfOptions = new EmfOptions { VectorRasterizationOptions = vectorRasterizationOptions }; // The Save method will save the resultant EMF file on the disk. image.Save( outputFileName, emfOptions ); } } } } }

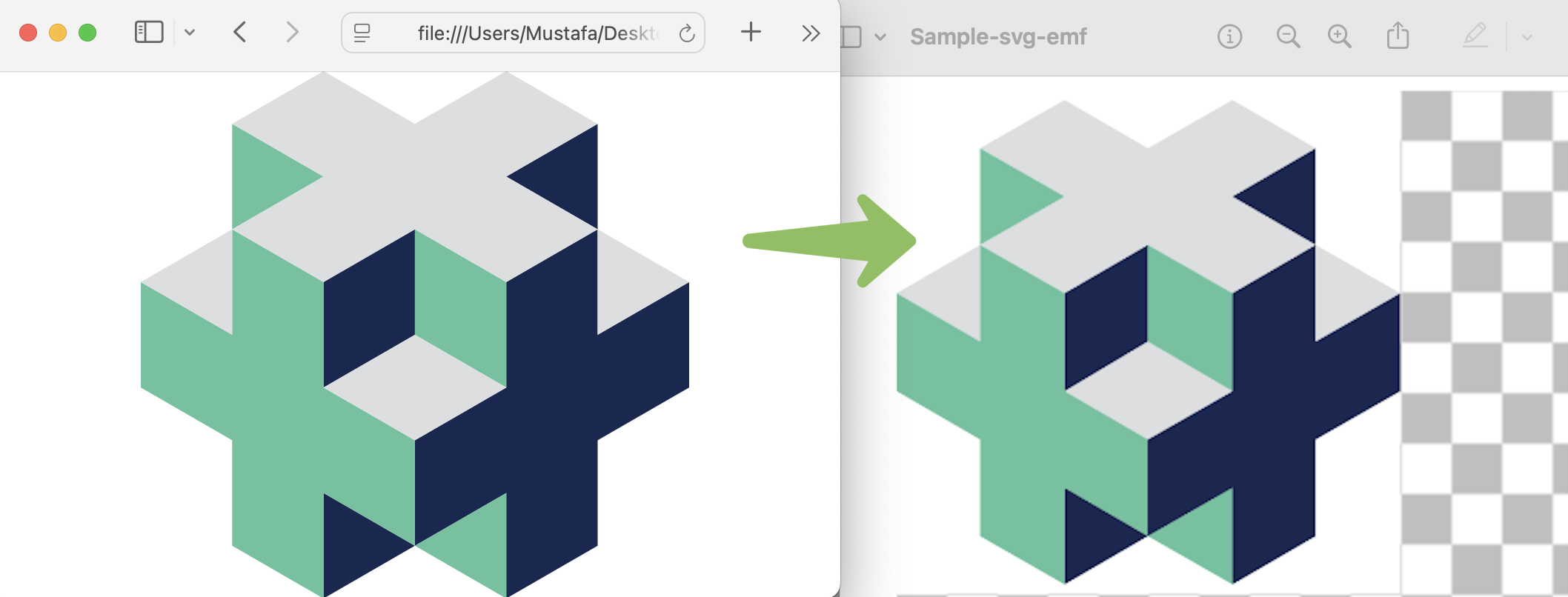

输出:
总结
我们探索了一种可靠的方法,可以在 C# 中以编程方式将 SVG 转换为 EMF。Aspose.Imaging for .NET是 .NET 开发人员实现自动化转换的优选方案。此外,这款图像处理 SDK 赋予程序员完全控制权,使他们能够根据自身需求扩展功能。这篇博文介绍了其基本功能。
